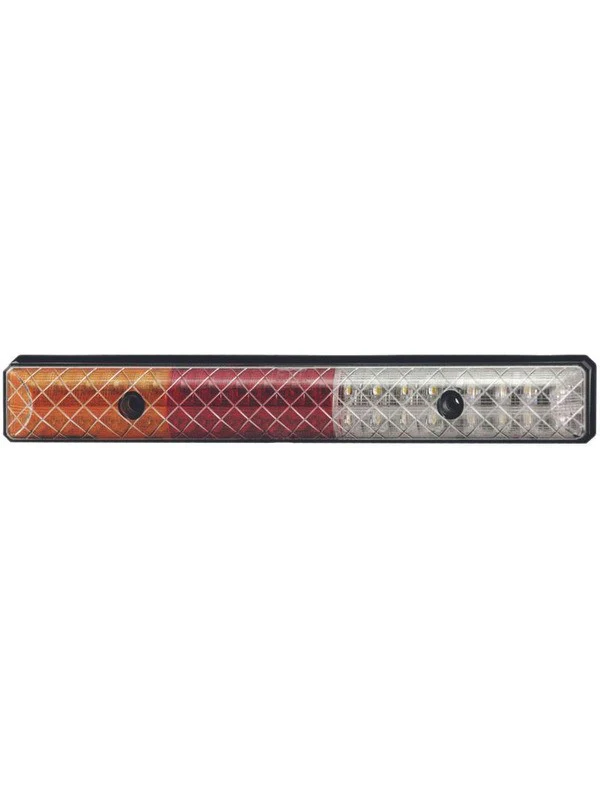

Roadvision Slimline BR300ARW Combination Rear Strip Light. Stop, Tail, Reverse. 4wd Trailer Truck Caravan
Roadvision Slimline BR300ARW Combination Rear Strip Light. Stop, Tail, Reverse. 4wd Trailer Truck Caravan
COMBINATION LAMPSÂ BR300 SERIES
ROADVISION’s BR300 Series LED rear combination lamps are a versatile slimline solution! Featuring Stop/Tail, Indicator & Reverse functions all in a super slim line package, the BR300 Series are a simple DIY trailer lighting solution. Designed for applications where space is at a premium, they deliver the durability of maintenance free LED technology and greater visibility providing increased safety. BR300’s are designed to be easily attached to horizontal or vertical mounting surfaces with a simple surface mount design. Roadvision’s BR300 Series combination lamps produce more light output than incandescent lamps whilst drawing a fraction of the current. Constructed with durable polycarbonate lenses and housings, these lamps are dust & water proof and totally maintenance free with a lifespan rated at 100,000hrs. With ROADVISION it’s FIT & FORGET.
price is per 1 light
- Compact slimline LED combination lamp
- Multi-volt 10-30V DC input & low current draw
- Brighter than conventional incandescent systems
- 100,000 hour LED life span with solid state technology
- Maintenance free
- Sealed polycarbonate lens & housing
- Water and dust proof
- Pre-wired with 300mm LEDLink Connector
- Simple surface mount design
- ADR/ECE approved for all functions
RANGE SPECIFICATIONS
Description - Rect Strip Stop/Tail/Ind/Rev
Functions - Stop/Tail Indicator & Reverse
Voltage Input - 10-30V DC
Number of LED's - Indicator - 10 LED's, Stop/Tail - 12 LED's, Reverse 16 LED's
Current Draw Amps - Ind - 0.2A @ 13.8V, S/T - 0.2/0.05A @ 13.8V
Dimensions AxBxC - 301x45x30mm
Lens Construction - Polycarbonate
Housing Construction - Polycarbonate
Mounting Hole Centre - 160mm
Cable Length - 300mm Tinned Copper, LEDLink Connector
Wiring Colour Codes - Earth - White, Stop - Red, Rail - Brown, Indicator - Green or Yellow
ADR Approval - Ind - CRN 46119, Stop - CRN 46104, Tail - CRN 46105, Rev - CRN 46103
Â
$23.88
Original: $79.59
-70%Roadvision Slimline BR300ARW Combination Rear Strip Light. Stop, Tail, Reverse. 4wd Trailer Truck Caravan—
$79.59
$23.88
Description
COMBINATION LAMPSÂ BR300 SERIES
ROADVISION’s BR300 Series LED rear combination lamps are a versatile slimline solution! Featuring Stop/Tail, Indicator & Reverse functions all in a super slim line package, the BR300 Series are a simple DIY trailer lighting solution. Designed for applications where space is at a premium, they deliver the durability of maintenance free LED technology and greater visibility providing increased safety. BR300’s are designed to be easily attached to horizontal or vertical mounting surfaces with a simple surface mount design. Roadvision’s BR300 Series combination lamps produce more light output than incandescent lamps whilst drawing a fraction of the current. Constructed with durable polycarbonate lenses and housings, these lamps are dust & water proof and totally maintenance free with a lifespan rated at 100,000hrs. With ROADVISION it’s FIT & FORGET.
price is per 1 light
RANGE FEATURES
- Compact slimline LED combination lamp
- Multi-volt 10-30V DC input & low current draw
- Brighter than conventional incandescent systems
- 100,000 hour LED life span with solid state technology
- Maintenance free
- Sealed polycarbonate lens & housing
- Water and dust proof
- Pre-wired with 300mm LEDLink Connector
- Simple surface mount design
- ADR/ECE approved for all functions
RANGE SPECIFICATIONS
Description - Rect Strip Stop/Tail/Ind/Rev
Functions - Stop/Tail Indicator & Reverse
Voltage Input - 10-30V DC
Number of LED's - Indicator - 10 LED's, Stop/Tail - 12 LED's, Reverse 16 LED's
Current Draw Amps - Ind - 0.2A @ 13.8V, S/T - 0.2/0.05A @ 13.8V
Dimensions AxBxC - 301x45x30mm
Lens Construction - Polycarbonate
Housing Construction - Polycarbonate
Mounting Hole Centre - 160mm
Cable Length - 300mm Tinned Copper, LEDLink Connector
Wiring Colour Codes - Earth - White, Stop - Red, Rail - Brown, Indicator - Green or Yellow
ADR Approval - Ind - CRN 46119, Stop - CRN 46104, Tail - CRN 46105, Rev - CRN 46103
