Boat Trailer Submersible Rear Combination LED Lights. Stop Tail Ref 162x80mm

    COMBINATION LAMPS

    BR205 SERIES

    X2 LIGHTS

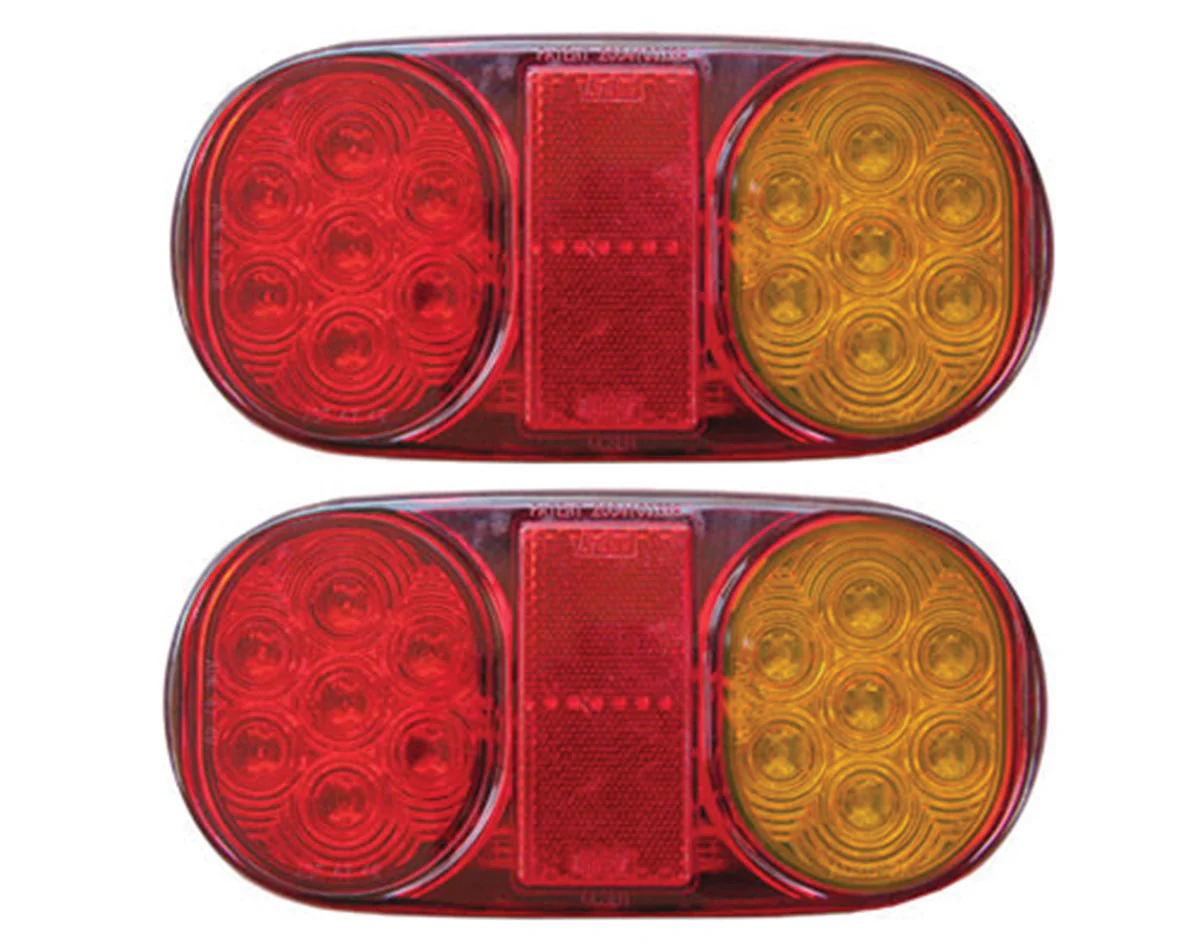

    ROADVISION’s BR205 Series LED rear combination lamps are the complete 12V marine trailer solution! Featuring Stop/Tail, Indicator & Reflector functions, they are designed specifically for marine trailer applications. The smallest of the BR Series marine trailer lamps, they are designed for budget conscious 12V DC applications where space is at a premium, delivering the durability of maintenance free LED technology and greater visibility providing increased safety. Roadvision’s BR205 Series combination lamps produce more light output than incandescent lamps whilst drawing a fraction of the current. Couple this with unbreakable polycarbonate lenses and an extremely tough housing manufactured from high impact ABS, these lamps are dust & water proof and totally maintenance free with a lifespan rated at 100,000hrs. With ROADVISION it’s FIT & FORGET.



    Compact marine LED combination lamp

    12V DC input & low current draw

    Brighter than conventional incandescent systems

    100,000 hour LED life span with solid state technology

    Maintenance free

    High impact ABS housing & polycarbonate lens

    Water and dust proof (submersible)

    Pre-wired with 300mm of sheathed tinned copper cable

    Available in a DIY twin pack

    Simple surface mount design

    ADR/ECE approved for all functions





    RANGE SPECIFICATIONS

    Description: Combination Lamp Kit

    Functions: Stop/Tail, Indicator & Reflector

    Voltage Input: 12V DC

    Number of LED's: Indicator - 7 LED's, Stop/Tail - 7 LED's

    Current Draw Amps, Ind - 0.1A @ 13.8V, S/T - 0.1/0.05A @ 13.8V

    Dimensions 162x80x19mm

    Lens Construction: Polycarbonate

    Housing Construction: High Impact ABS

    Mounting Hole Centre: 100mm Stud Centres

    Cable Length: 300mm Sheathed

    Wiring Colour Codes: Earth - White, Stop - Red, Tail - Brown, Indicator - Green or Yellow

    ADR Approved

    CTA Approved



GUARANTEED WITH A 5 YEAR WARRANTY
